NC Cutting Machine Programming Software - InteGNPS Introduction


Download InteGNPS DEMO Version(ver 18.01 English Version) Last updated:2008-06-19

(for Windows 98/Me/NT/2000/XP/2003/Vista)

InteGNPS Introduction

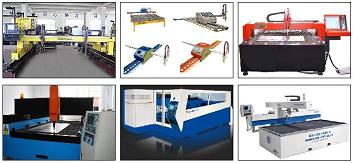

InteGNPS is a software used for NC(Numerical Control) cutting machine programming,support flame,plasm,laser,water jet etc. type of cutting machines.

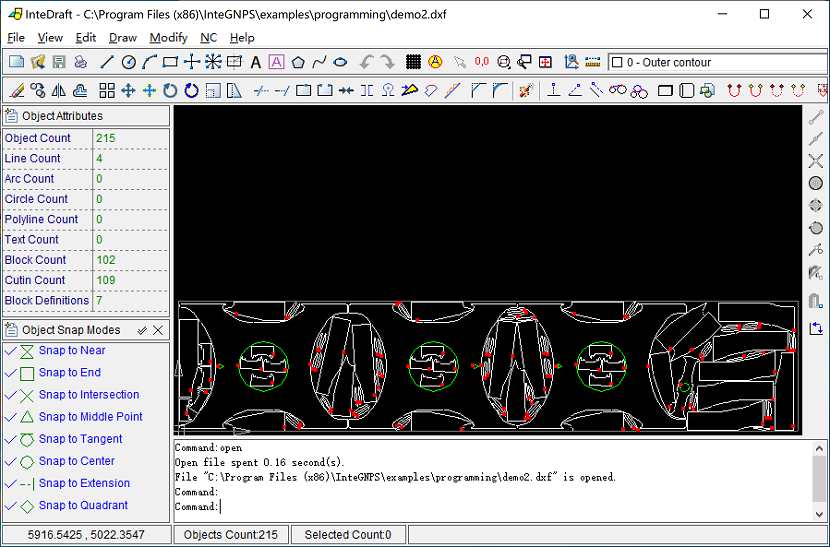

InteGNPS support darwing and nesting in AutoCAD environment,InteGNPS convert nesting file (AutoCAD DXF) to NC code file for cutting machine,in InteGNPS can view AutoCAD nesting file,screen plot NC code file,show NC code as graphic,step by step simulate NC codes.

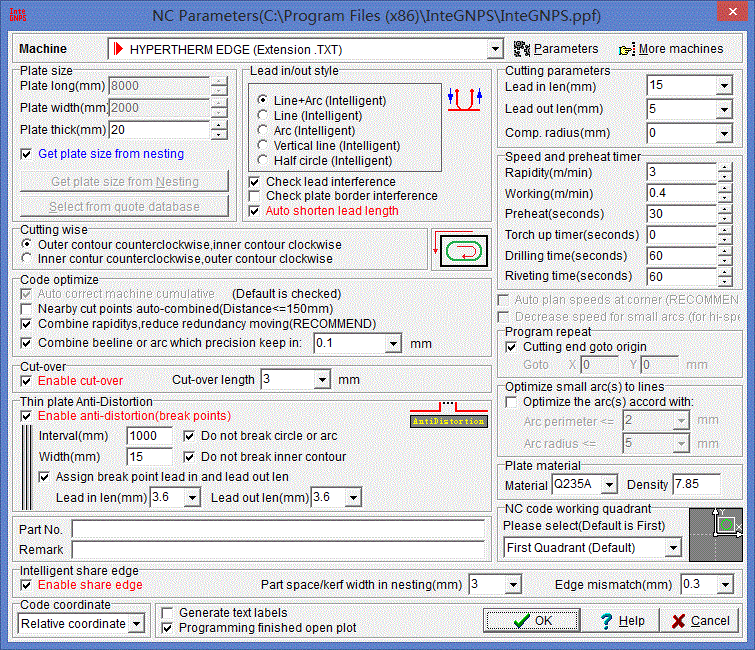

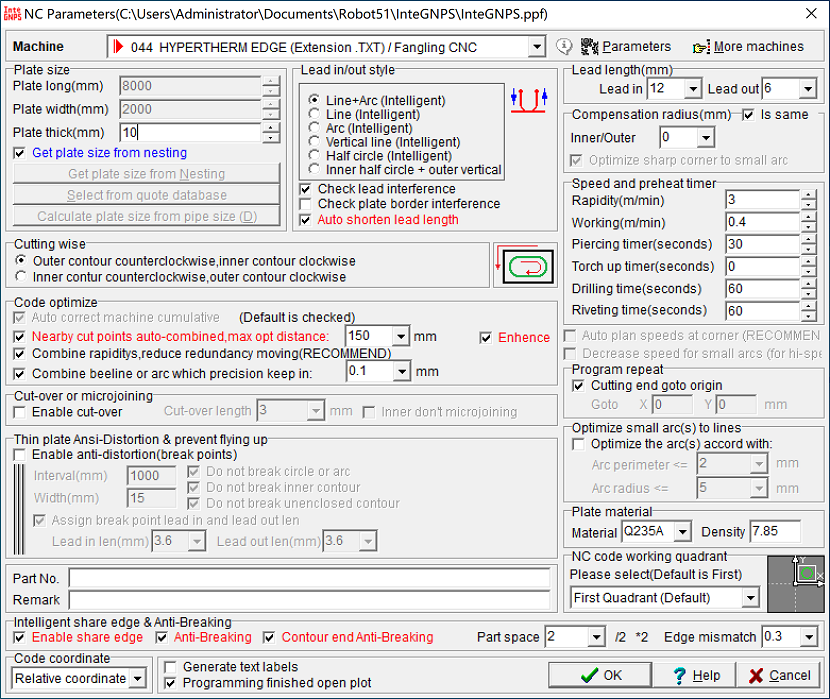

InteGNPS can generate NC code file for cutting machine,punched paper tape etc,integrated with auto-nesting,laminal sheet anti-distortion,intelligent lead-in and lead-out,nearby cut points auto-combined,software compensation,interference points check,cut-bridge,punch-marking,powder-marking,code optimize,NC code spell check,cutting text and other features.calculate cutting time,cutting weight,cutting area and steel usage.generate print preview report.

InteGNPS integrate with AutoCAD effectively,AutoCAD DWG file can be used as part drawing directly for nesting,InteGNPS is simple in use,with full functions and reliably,in AutoCAD you can draw variform drawings.InteGNPS is a powerful and practical tool for NC cutting programming.

InteGNPS features:

  • Simple in use,easiness to learn,integrate with AutoCAD.Multi-language support,now support Chinese(Simplified) and English version.

  • Special auto correct machine cumulative,ensure complex nesting programming accurately.

  • Special combine beeline which quoin less than 0.1 mm.

  • Special laminal sheet anti-distortion can get good quality cutting.

  • Special nearby cut points auto-combined,reduce make hole times and enhance sheet usage.

  • Special intelligent lead-in and lead-out,small circle automatic lead in/out from center.

  • Special support for cutting,marking,punching composit code in one NC file.

  • Special support optimize small arc(s) to lines,prevent control card process arc(s) occur problems.

  • Software compensation supported.

  • Special support cut-in place cut-over technical,can sweep the cut-in place salients,especially useful for plasma cutting.

  • Unenclosed contour cutting supported.

  • Cut-in position modifiable,cut wise is flexible.

  • Program repeat supported.

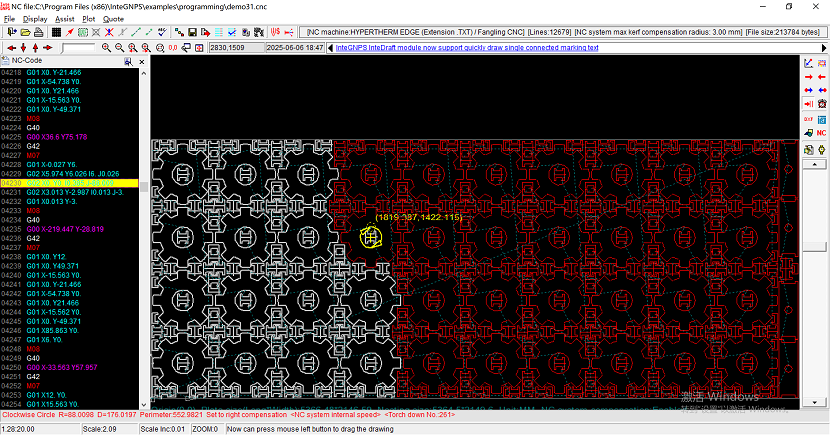

  • Screen plot NC code as graphical,spell check,interference points check.

  • Print preview nesting layout and parameters.

  • Special communication to PocketPC,through PocketPC can send NC code to cutting machine,software FastComm is an option for PocketPC OS.

  • DNC communication supported.

  • Auto-nesting module integrated.

  • Intelligent cutting quote system module(InteQuote) help you print out the smart quote sheet and parts list after programming.

  • InteGNPS integrate with Windows Explorer.

  • Support many cutting machines,nesting once run for all cutting machines.

  • Support Tribon-GEN format file plot and convert to machine code & AutoCAD

  • InteConvert module support all kinds of machin codes converting.

InteGNPS developed ten years ago,its full-functions,run reliable,programming accurately,intelligent,easiness to learn,conveniently to use,now used widely in China.

InteGNPS is keep ahead in cutting machine programming area.

InteGNPS is for Windows 95/98/NT/2000/Me/XP/2003.

InteGNPS support AutoCAD R12/R13/R14/2000/2002/2004/2005/2006/2007/2008/2009 etc.

InteGNPS Copyright (C) 1993-2008.

InteGNPS current supported cutting machines:

  • TANAKA KT650B
  • SHANGHAI 4A
  • GK-6000
  • ESAB ESSI
  • MESSER
  • SHENZHEN 4A
  • SHANGHAI GK
  • GK-2
  • KOIKE
  • NC704
  • SHANGHAI-ISO
  • GK-3/PA8000
  • GK-4
  • HYPERTHERM EDGE
  • BEIJING Start
  • SUN2000
  • SHANGHAI HUAWEI
  • SPAIN FAGOR
  • Honeybee 2000
  • FAGOR(WUXI HUALIAN)
  • FAGOR PLASMA(WUXI HUALIAN)
  • SPAIN FAGOR-2
  • FANUC 10M-A
  • FANUC 10M-A PLASMA
  • America L-TEC
  • WUHAN CSF-5C
  • ESAB ESSI PLASMA
  • DONGFANG-2
  • Boda-Fagor
  • MESSER MG12
  • BEIJING Start-2
  • GK-5
  • BEIJING Start-3
  • THERMACUT 2000 (ESSI)
  • THERMACUT 2000 (ISO)
  • SHANGHAI KANGPU
  • SPAIN FAGOR-3
  • Honeybee PMC
  • CHANGZHOU HUAQIANG EDGE
  • America BURNY10LCD
  • Lynx EIA
  • START SH-2000
  • HYPERTHERM EDGE (Extension .TXT)
  • CNC-110 (4A)
  • JT300 Normal
  • FAGOR-8025 (YANGTONG)
  • JT300 Flame and Marking Composite mode
  • JT300 Plasma and Marking Composite mode
  • FAGOR-2530
  • FAGOR-2530 Plasma
  • STMI A2
  • STMI A4
  • START SH-2000 Plasma
  • PA8000
  • XIAO CAI FENG
  • Foundertop Plasma
  • TAIWAN AMG
  • HYPERTHERM EDGE UNLIMITED ROTATION SLOPE CUTTING
  • REL-NC
  • ABS-NC
  • ZHONGJIE EPS
  • HV-CUT SH2000/3000
  • HV-CUT SH2000/3000 with high-control
  • FAGOR-8035
  • Lan Xun ZLQ
  • CSF Series
  • ADTech
  • JINRUIDA
  • Autoflow jet
  • BLC Flame
  • BLC Plasma
  • KASITE
  • START Portable Flame Cutting
  • START Portable Plasma Cutting
  • JINRUIDA GK
  • FIN-CWC-FAGOR-8035
  • FUSHAN JI DIAN ESSI
  • SHANGHAI KANGPU CNC2000
  • Tribon GEN format
  • CHANGSHA CUTTER
  • Sponge cutting(YP-180)/Adtech
  • START SH-3000
  • HYPERTHERM EDGE LIMITED ROTATION SLOPE CUTTING
  • SUZHOU WEIDA



InteGNPS Pricing
Module Name
Price (RMB)
Remark
InteGNPS 8500.00 Required module
InteNest 6500.00 Optional module,InteGNPS module is required
InteQuote 8500.00 Optional module,InteGNPS module is required
InteConvert 6500.00 Optional module,InteGNPS module is required
InteShapes 2500.00 Optional module,InteGNPS module is required
OEM batch order please contact with us
InteGNPS Purchasing

BANK INFORMATION:

PLEASE REMIT CHINESE RMB OR USD WITH REAL TIME EXCAHNGE RATE TO:

BANK OF CHINA,CHANGZHOU BRANCH

BENE: CHEN ZHONG HUA

ADDR OR TEL: +86 13912302021

ACCOUNT NO: 4444705-0188-010316-7

BANK NAME: BANK OF CHINA CHANGZHOU BRANCH JIANGSU PR.

SWIFT CODE: BKCHCNBJ95E

BANK ADDR: NO. 150 HEPING SOUTH ROAD CHANGZHOU JIANGSU PR. CHINA

If your cutting machine code format not listed above,please contact with developer,we will add it for you.

Download InteGNPS English version Primer Guide Document

InteGNPS support other CAD softwares




InteShapes Introduction

Download InteShapes (ver 1.03 English Version) Last updated:2008-06-27

(for Windows 98/Me/NT/2000/XP/2003/Vista)

InteShapes Introduction

InteShapes is a CAD secondary development platform,its base on C/C++ language,through write C/C++ script and run it directly,you can through parameters driving to reach draw graphics and curves,pipes deploy,mathmatic calculation etc. purpose,InteShapes support all AutoCAD versions,and can output standard DXF format file for other CAD tools,InteShapes is a practical tool just for engineering designers,teaching people,programmers.

InteShapes Features:

  • InteShapes support C/C++ language,its applicable for complex mathematics compute,the script needn't compile and can be run directly.
  • InteShapes use message driving to run the script,so user only need write main functions body,needn't write IDE.
  • InteShapes involve many internal functions,make programming simply,new functions will be added in the future new versions.
  • InteShapes compactness integrate with AutoCAD,the drawing can be output to AutoCAD or DXF file.
  • InteShapes provide some base shapes,user can add shapes by self also.
  • InteShapes use directory structure to classify shapes.
  • InteShapes support multi-languages,it makes develop conviently for locale development.
  • InteShapes support free online update.
